The inside cylinders and valve chests were as the '4F' but cylinder bores were increased slightly to allow for the larger boiler that would be fitted.
The Joy valve gear was copied except for the slides, which were made straight instead of curved.
The same feature was included on the Clayton wagon and as I still had the jig for making the slide shaft it seemed to make sense.
The slide shaft die blocks work hard on Joy valve gear, so the simpler the better.

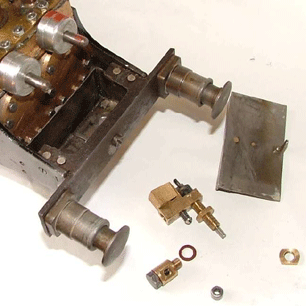

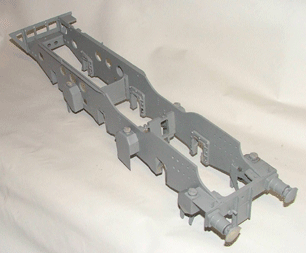

The oil tank is the full width of the frames behind the front buffer beam and the oscillating LBSC style pump has a 1/16" shaft that protrudes through the left frame just ahead of the leading sandbox (Photo).
An eccentric fitted to the leading wheel pretty much as in the full size drives a small roller clutch.
Oil is pumped into the valve chest through a drilling in the cylinder block.
A screw reverser was designed to fit onto the left side of the footplate, with the operating rod concealed behind the boiler cladding and arranged to line up with a dummy steam cylinder mounted in the correct position.
A ball detent was fitted behind the brass hand wheel to hold the wheel in any set position, unaffected by any vibration coming up from the motion.
The boiler design was loosely based on the '4F' but scaled up to incorporate the massive firebox.
On the full size loco this was the result of using ‘Lord Nelson’ flanging plates to produce a grate over 8 feet long!
A short taper boiler barely longer than the firebox was used on the full size but for simplicity I used copper tube 3.75” diameter.

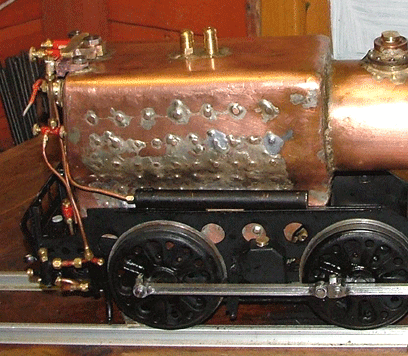

There are two superheater flues 3/4" diameter, 3 large tubes 7/16" o.d. diameter and 9 tubes 5/16" o.d. diameter (Photo).
The boiler back head slopes as on the full size making the regular bush mountings rather interesting.
A disc steam valve with two ports is fitted to give realistic response to the long handled regulator.

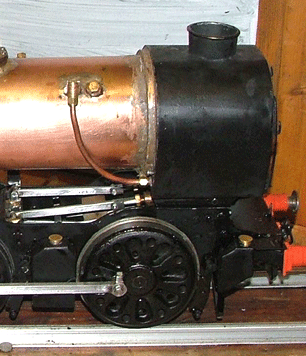

The smokebox is a steel fabrication, which sits neatly on top of the valve chest, which acts as the floor.
The smokebox door is retained as on the full size by clamping bolts on the rim, although these are 8BA not 2”!
The steam feed from the boiler is divided into two ¼" copper pipes which return directly into two concentric semi radiant superheaters.
These feed into the steamchest one each side of the blast pipe.

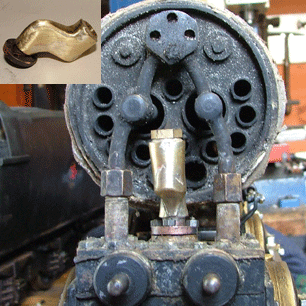

The blastpipe had to be fabricated from brass in order to bring it far enough forward to line up with the large diameter Bulleid chimney, and it resembles an ‘s’ shape (Photo).
After extensive track testing to maintain steaming under light loads, a 6mm blast nozzle and a 24mm throat diameter for the chimney seem to work well.
A single nozzle blower proved inadequate so an annular ring with 3 jets of 1mm diameter each was constructed.
There were several redesigns of the grate and ashpan.

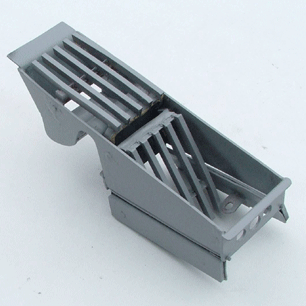

The final version incorporates a partial drop grate and longitudinal hopper doors, with air entry at the front and rear of the ashpan plus whatever gets in around the edges! (Photo).
The distinctive cladding is all mild steel sheet, some of it recycled computer casings that are easily worked, being rather soft steel.
Removing the paint was a nuisance but it is satisfying to think of obsolete electronic goods being recycled back into steam engines!
The short boiler barrel is insulated with glass mat and then clad with soft aluminium sheet.
The barrel and firebox cladding are separate brazed assemblies bolted together.
Two screws protruding from the back of the smokebox locate in keyholes on the front edge of the cladding and the cab is then screwed to two small lugs on the back of the firebox cladding.
Both the cab and the tender sides follow the same curved profile and also match the profile of the pacifics and the Bulleid steel coaching stock.
The curve on my model is slightly exaggerated whereas on the Hornby model it is not quite curved enough.
The cab roof is removable although it is just possible to drive the loco with roof in place.
The tender cab roof has to come off for driving, this was realised after the tender had been completed!
The tender body is steel and is lined with Hammerite paint to protect it from rusting.
I built the tender upside down and so had a brazed joint along the bottom of the sides on the outside.
Had I built it from the bottom up this joint would have been concealed on the inside.

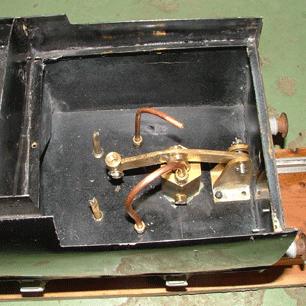

A vertical hand pump is fitted in the tender operated by a handle disguised as the water treatment filler cap (Photo).
Serious pumping gives the suspension a hard time as most of the weight of the tender is carried on the centre axle to drive the pump and the pump is over the rear axle.
Water capacity was increased by robbing some of the coal space, giving over 4 litres when full.

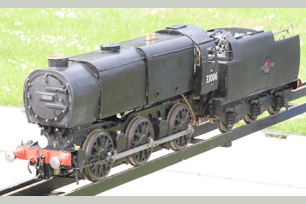

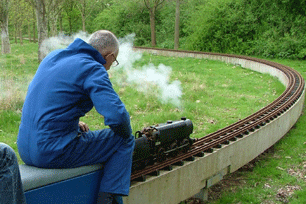

Performance on the track has been very satisfactory with enough power to haul four adults including the driver on a substantial 7.25” gauge bogie trolley.
On a good day 20 laps of the 1/3rd mile Bournemouth track can be completed, although to maintain pressure the fire needs to be deep and even.
As soon as the loco is on the move the reverser can be wound right up almost to midway for running on level track, and the harder the loco is driven the more steam it seems to produce.
The loco weighs in at 25kgs and the tender just 8kgs dry, allowing one-man transport without too much strain.
The dummy sandboxes are filled with lead to improve adhesion but on reflection even more weight could have been added to assist starting with heavy loads.

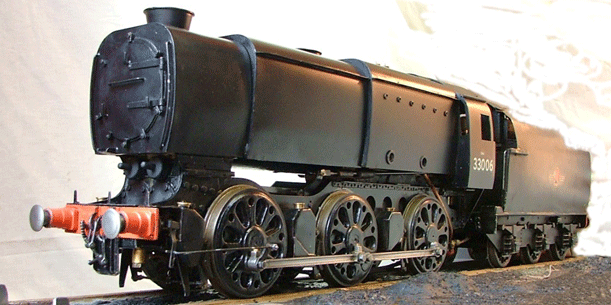

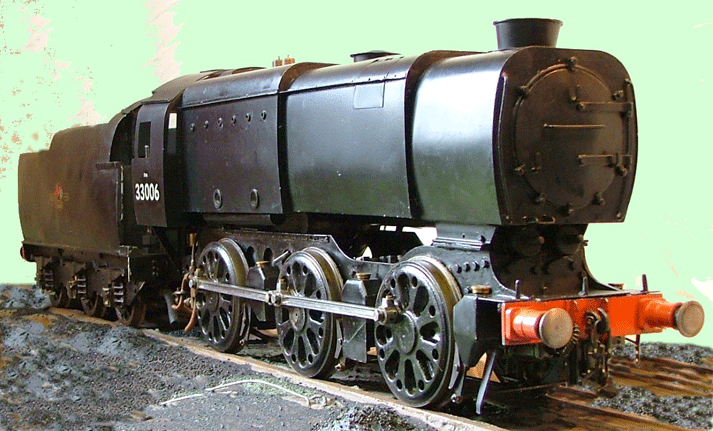

There are a few frills to be added such as tender brakes, steps and brake pipes, but the model captures the look and to me the overall appeal of this great class of engines.
In conclusion, the loco performs better than expected, just needing a more reliable injector and a better driver to be absolutely brilliant!
|
